| ID | CHANGE | REASONING |
|---|---|---|
| 08.01 00.14 | Data Fields Renamed Renamed the “TypeName” data field to “Type.Name” and the “Space” data field to “Space.Name”. | To align with the new naming convention. |
| 08.03 | Data Fields Added Added a new “Space.SecondaryName” data field. | To accommodate doors and other openings that lead from one space to another. |

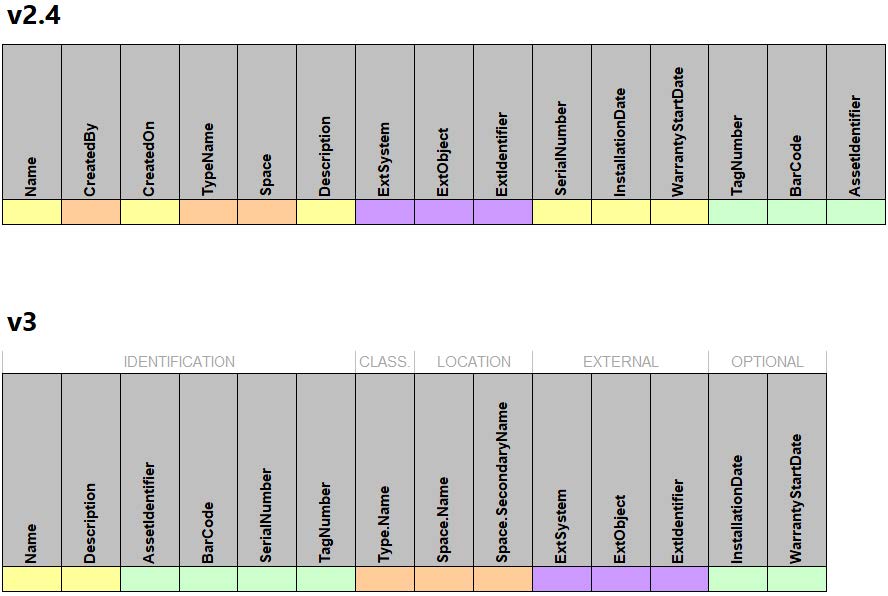

The figure below shows the comparison between the data fields in V2.4 and those in V3 for this data table. The gray text along the top of V3 does not display in the data tables and is shown to better understand the new organization of the data fields.
There are several approved formats in which the COBie database can be delivered. These include:
FIGURE AD.9
